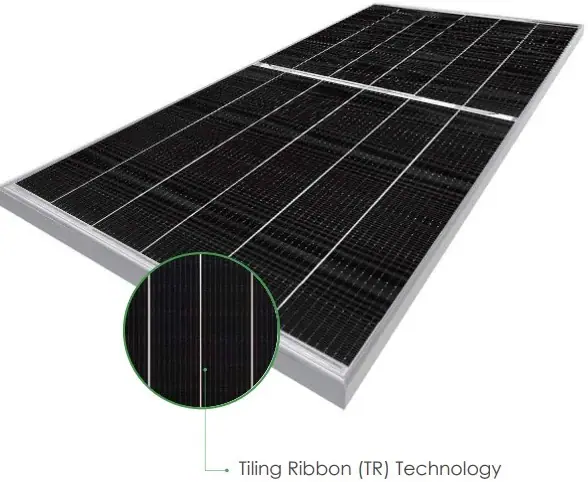

Tiger 78TR 460 -480 Watt

Mechanical Characteristics
Cell Type
No. of cells
Dimensions
Weight
Front Glass
Frame
Junction Box
Output Cables
P type Mono-crystalline
156(2×78)
2182×1029×35mm (85.91×40.51×1.38 inch)
25.0kg (55.12 lbs)
3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass
Anodized Aluminium Alloy
IP68 Rated
TUV 1×4.0mm2
(+): 290mm , (-): 145mm or Customized Length
